Introduction
Building a generator soundproof enclosure at home is a practical solution to enhance your user experience and minimize neighborhood disturbances. Whether for emergency power outages or providing electricity for backyard gatherings, a well-designed DIY generator quiet box can significantly reduce noise while ensuring safe operation. This guide will walk you through creating an efficient and safe homemade soundproofing solution.
Why Build a Generator Soundproof Enclosure?
Household generators typically operate at 75-90 decibels, equivalent to busy traffic or lawn mower noise levels. This not only disrupts household peace but may also violate local noise regulations. A homemade generator soundproof box can reduce noise by 10-20 decibels through absorbing and blocking sound waves, effectively cutting perceived noise by approximately 50%.
Design and Safety Priorities
Before construction, understand these core principles:
-
Adequate Ventilation: Generators require continuous airflow for cooling and exhaust emission
-
Heat Management: Prevent the enclosure from becoming an "oven" that affects performance
-
Easy Refueling Access: Maintain sufficient access points to avoid frequent disassembly
-
Material Selection: Choose appropriate soundproofing materials considering fire resistance and durability
-
Portability: Add wheels and handles if generator needs to be moved between locations
SAFETY WARNING: Never operate a generator indoors or in enclosed spaces, even with soundproofing. Carbon monoxide is a odorless, colorless deadly gas that requires full outdoor operation only.
Materials and Tools Checklist
Primary Materials
-
Framing Materials: 2x2 or 2x4 lumber, or 1-1.5 inch square metal tubes
-
Panel Materials: ½-inch to ¾-inch plywood or MDF board
-
Soundproofing Materials: Acoustic insulation, soundproofing mats, professional acoustic foam
-
Sealing Materials: Waterproof silicone sealant, weather stripping
-
Ventilation Components: Metal mesh screens, aluminum louvers, PVC fittings
-
Finishing Materials: Exterior paint, handles, hinges, latch locks
Essential Tools
-
Measuring tape and pencil
-
Handsaw or circular saw
-
Power drill and screwdriver
-
Staple gun
-
Protective gloves and glasses

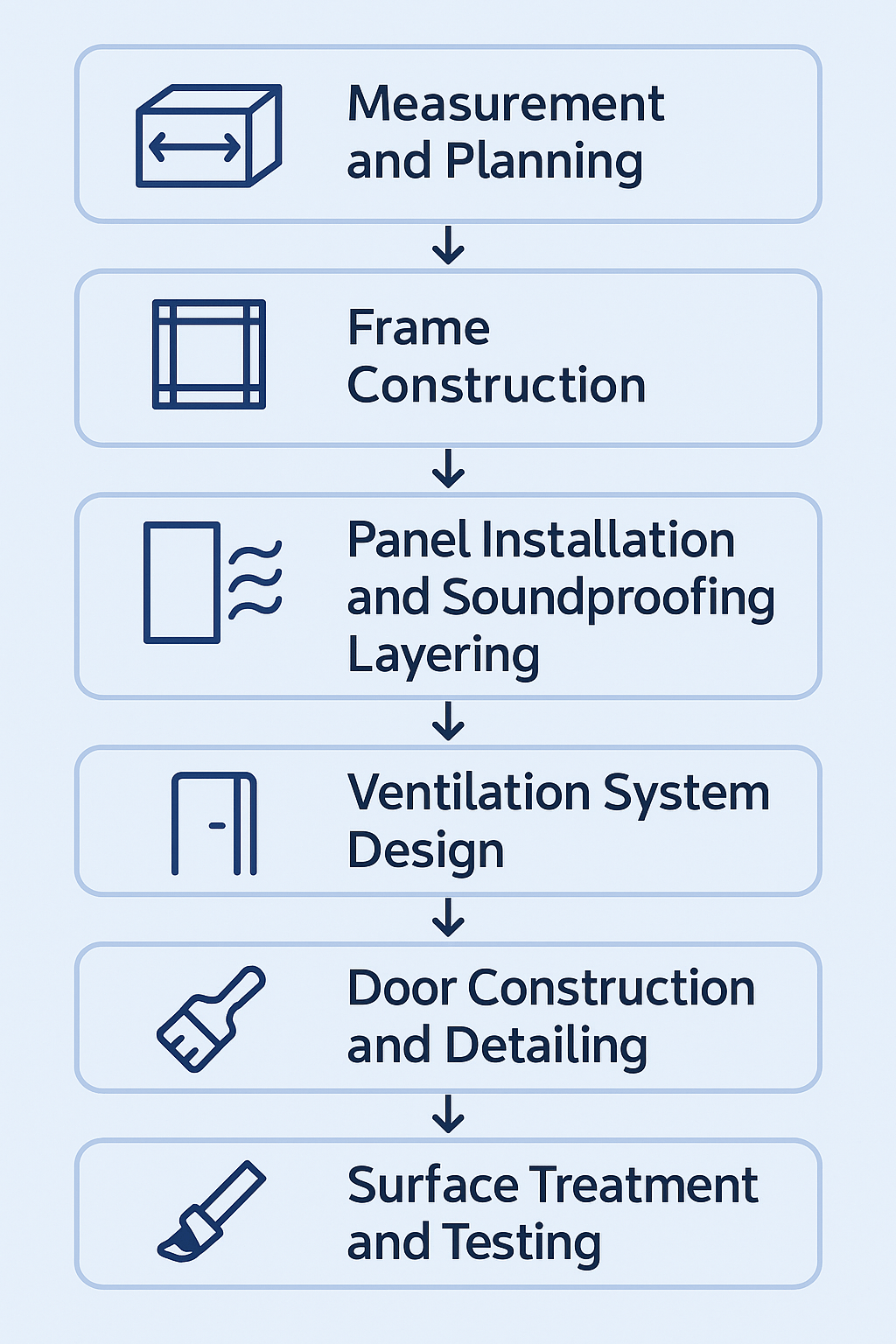

Step-by-Step Construction Guide
Step 1: Measurement and Planning
Measure generator length, width, and height precisely, adding 6-8 inches to each dimension for soundproofing materials and adequate space. Create a simple sketch marking door position, ventilation openings, and control panel access points.
Step 2: Frame Construction
Build a sturdy frame using wood or metal tubes:
-
Ensure base frame is strong enough to support generator weight
-
Reinforce frame at planned door locations
-
Reserve openings for ventilation ducts
Step 3: Panel Installation and Soundproofing Layering
-
Cut panels to cover all four sides, top and bottom
-
Reserve one side (typically front) for the opening door
-
Adhere soundproofing mats to interior surfaces
-
Cover mats with acoustic insulation or acoustic foam
-
Secure insulation with mesh fabric to prevent loosening
Step 4: Ventilation System Design
This is the most critical step:
-
Air Intakes: Design low-position vents on the generator fan side
-
Exhaust Outlets: Design high-position vents on the opposite side
-
Ventilation Ducts: Create baffled ventilation channels with internal sound-absorbing materials
-
Protective Screens: Cover all vents with metal mesh to prevent pest entry
Step 5: Door Construction and Detailing
-
Install door with sturdy hinges
-
Add weather stripping around door frame for tight seal
-
Install latch locks to prevent accidental opening during operation
-
Add small doors or openings for controls and refueling
Step 6: Surface Treatment and Testing
-
Paint exterior surfaces with outdoor paint for weather resistance
-
Add wheels or slides for mobility
-
Test generator temperature performance in the enclosure without load
-
Use decibel meter apps to measure sound reduction effectiveness
Budget and Effectiveness Evaluation
A homemade generator soundproof enclosure typically costs 1/3 to 1/2 of professional products. Basic wood structures with fundamental soundproofing materials start from a few hundred RMB, while solutions incorporating high-quality acoustic foam and professional components may require higher budgets.
In terms of effectiveness, a well-constructed DIY soundproof box typically reduces noise by 10-15 decibels, effectively halving the noise volume. More complex designs, particularly those incorporating baffled ventilation systems, can achieve up to 20 decibels of noise reduction.
Maintenance and Usage Tips
-
Regularly check that ventilation openings remain unobstructed
-
Inspect internal soundproofing materials every few months
-
Always ensure doors are closed during operation
-
Monitor generator operating temperature within the enclosure
-
Turn off generator and allow complete cooling before refueling
Conclusion
Building a homemade generator soundproof enclosure is a worthwhile weekend project that significantly enhances generator usability while respecting neighborhood peace. By following these steps with emphasis on ventilation and safety, you can create an effective and practical soundproofing solution.
Further Reading: For more professional noise control solutions and comprehensive understanding of generator noise principles and compliance standards, visit our guide: 2025 Ultimate Guide to Diesel Generator Noise Control: Sources, Solutions & Compliance.
Whether preparing for emergency outages or powering outdoor activities, your homemade quiet box will make your generator a better neighbor while extending equipment lifespan. Build safely and enjoy your quieter power supply experience!
